2009 - 2015 Aprilia RSV4 No Cut Frame Front & Rear Axle Sliders Case Covers
Condition: New
Material: UHMW-PE (ultra high molecular weight polyethylene)
Slider dimensions: Approx 3 " in overall length, 1.75 " in diameter
No cut or fairing modifications required
Fit models: Aprilia
2009 - 2015 RSV4 / RSV4-R

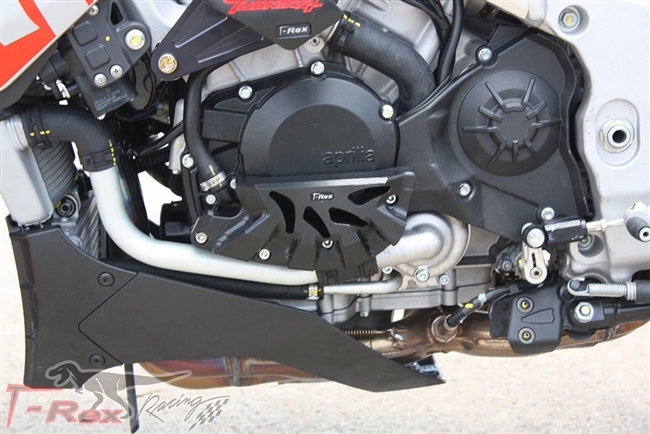

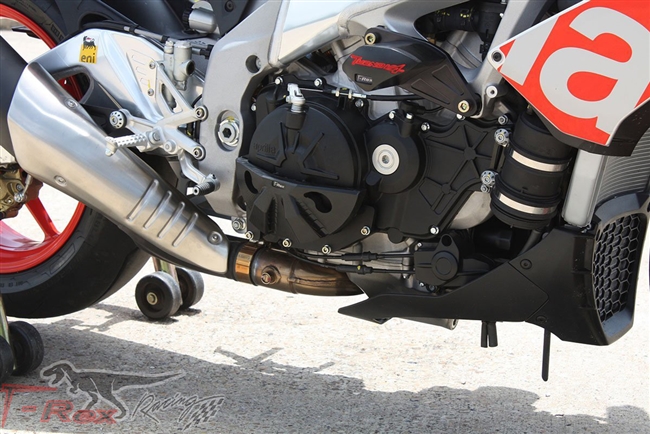

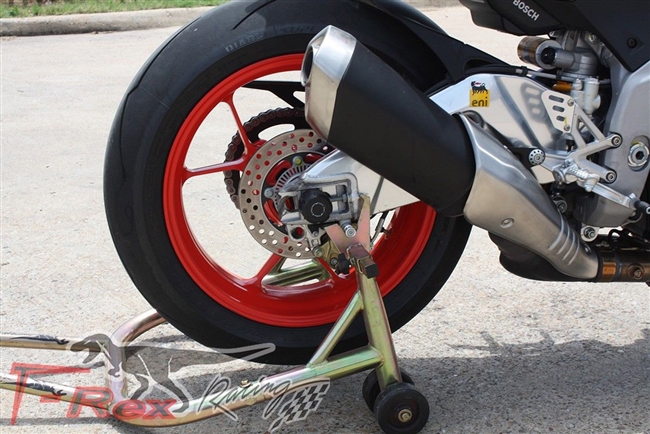

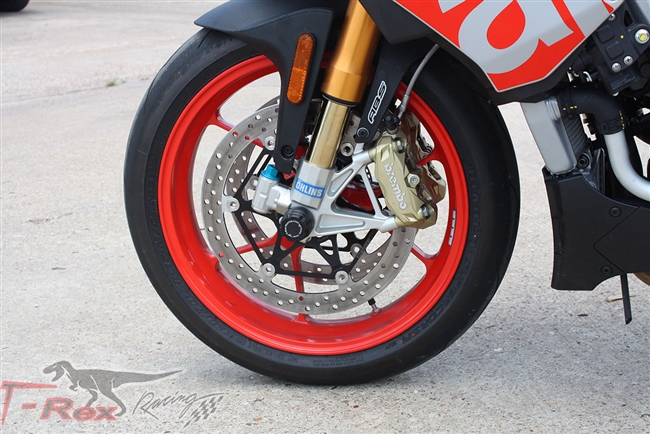

This purchase is for a complete protection kit that includes a set of frame sliders, front & rear axle sliders, and case covers for the above bike model. The sliders feature a new design of a complete solid puck without a hollowed-out center. This increases the strength and contact surface to about 30%. The bracket is bolted to the engine mount and the slider puck is bolted onto it. The brackets have two attachment points preventing them from rotating in the event of a low side. The material of the puck is made of UHMW-PE (ultra high molecular weight polyethylene), a tough plastic with good strength, wear resistance and dimensional stability. It is more dimensionally stable than Nylon and used in many industrial ball bearing and friction reducing applications. Compared to Delrin, it is softer but tougher. Delrin is harder but more brittle. It is an ideal material for frame sliders since it can absorb more impact force onto itself and therefore reduce the impact on the frame and engine. The slider pucks can be inexpensively replaced in case of a low-side. We use highest grade commercially available 12.9(177,000 psi in tensile strength) wherever possible. Rest assured that you are getting the best material commercially available.
